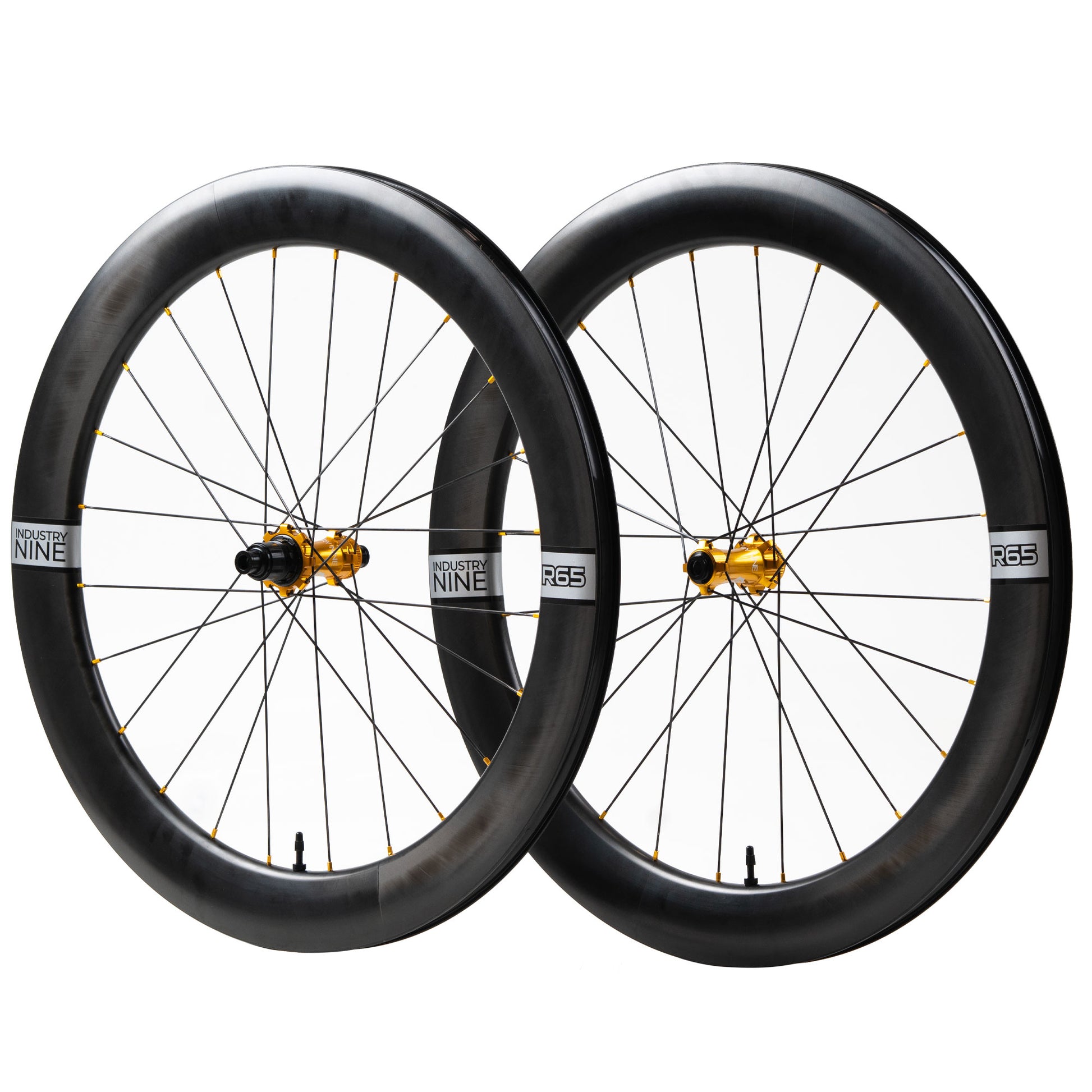

Your new R65 wheelset.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Spoke type:

Select Hub model:

Select Front rim:

Select Front spacing:

Select Brake mount:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black

Your new R65 wheel.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Spoke type:

Select Hub model:

Select Rear rim:

Select Rear spacing:

Select Brake mount:

Select Freehub driver:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black

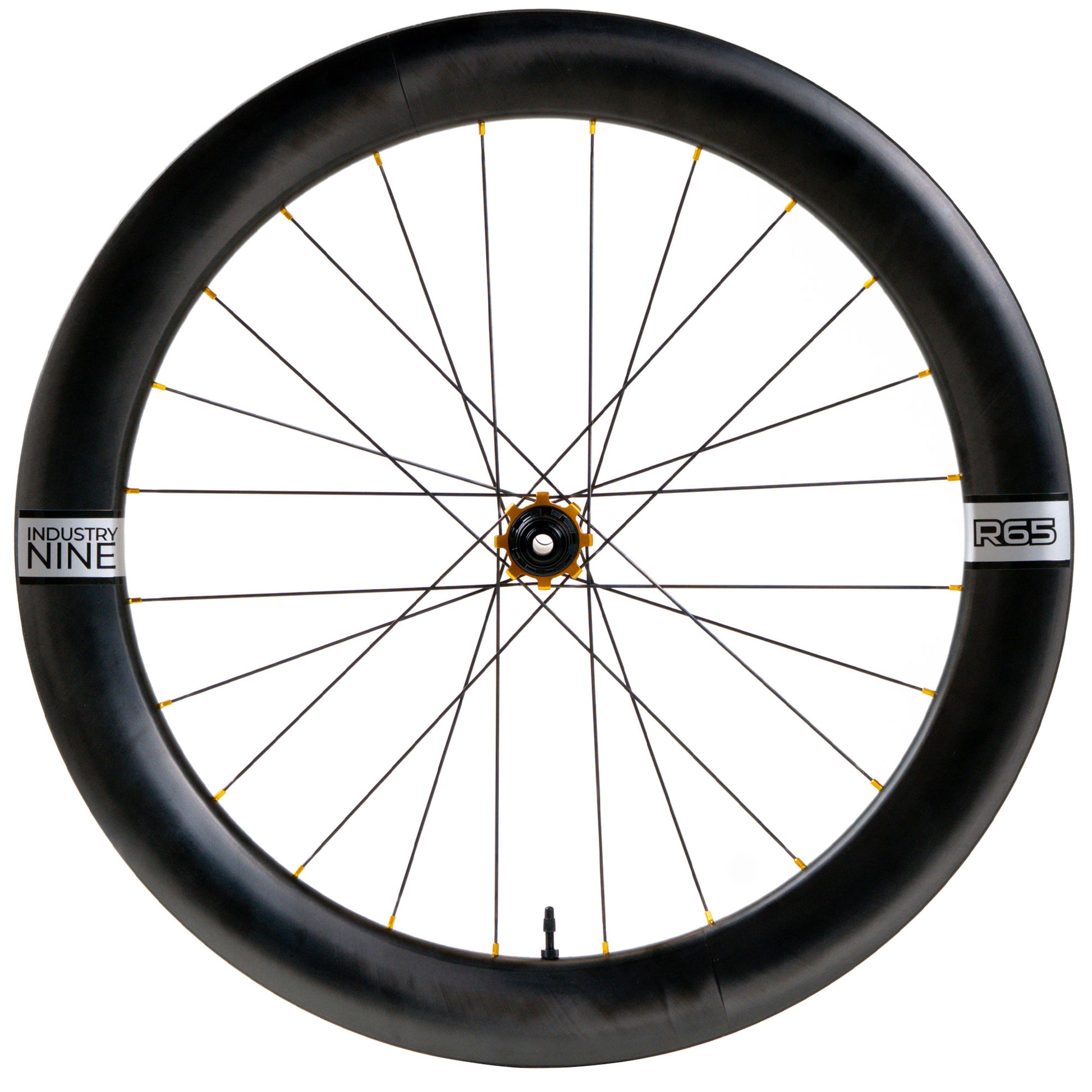

Your new R65 wheel.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Rim size:

Select Hole count:

Your new R65 rim.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.
Machined in Asheville, NC

Machined in Asheville, NC

Everything it builds starts the same way: ideas, raw materials, and human hands working with machines. All guided by an unspoken agreement that each time, it has to be right. Our SOLiX hubs are proudly made at our machine shop in Asheville, NC.

Aero Optimized Carbon Rim

Aero Optimized Carbon Rim

CFD born and wind tunnel tested, our R Carbon rims are among the fastest disc-specific rims available. Even better, they're light and tubeless ready too

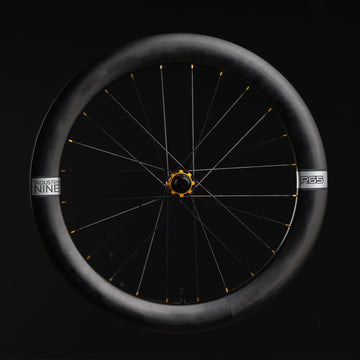

R65 Rim Specs

R65 Rim Specs

Material: Carbon
Size: 29"
Hole Count: 24h
Internal Width: 22mm
Rim Depth: 65mm
ERD: 511mm
Weight: 460g

Intended Use: WHEN SPEED AND CONFIDENCE ARE THE PRIMARY OBJECTIVE

Wheel Weights Classic
700c Front 670g
700c Rear 780g
700c Wheelset 1450g

All weights are approximate. Measured in grams (g). Due to the manufacturing process, each wheel can vary +/- 10g. All wheels weighed using 12x100–12x142 hubs.

What Drives it all.

What Drives it all.

Our patent-protected freehub technology offers unrivaled .59° engagement for our Solix family of wheels. Aero, light weight, yet surprisingly durable using a 2:1 lacing pattern. Our Solix SL hub and spoke chassis rides as good as it looks.

Solix SL Specs

Hub: SOLiX

P.O.E: 605 points

Engagement: .59 degrees

Spoke: Straight Pull Sapim

At the heart of the Solix rear hub is a continuously-phased five-pawl freehub seamlessly integrating with a 121 tooth drive ring - offering 605 points of contact translating to an ultra-fine .59° engagement. Crafted from A2 tool steel using precision wire EDM, the pawls and drive rings are engineered for maximum durability. To bring resistance and freewheeling noise to a minimum, we’ve reduced the driving diameter, pawl rotation, and pawl spring pressure, and changed the FH seal layout.
