Build your Fuse Carbon

Start Building

Summary

Select Spoke type:

Select Hub model:

Select Front rim:

Select Rear rim:

Select Front spacing:

Select Rear spacing:

Select Brake mount:

Select Freehub driver:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

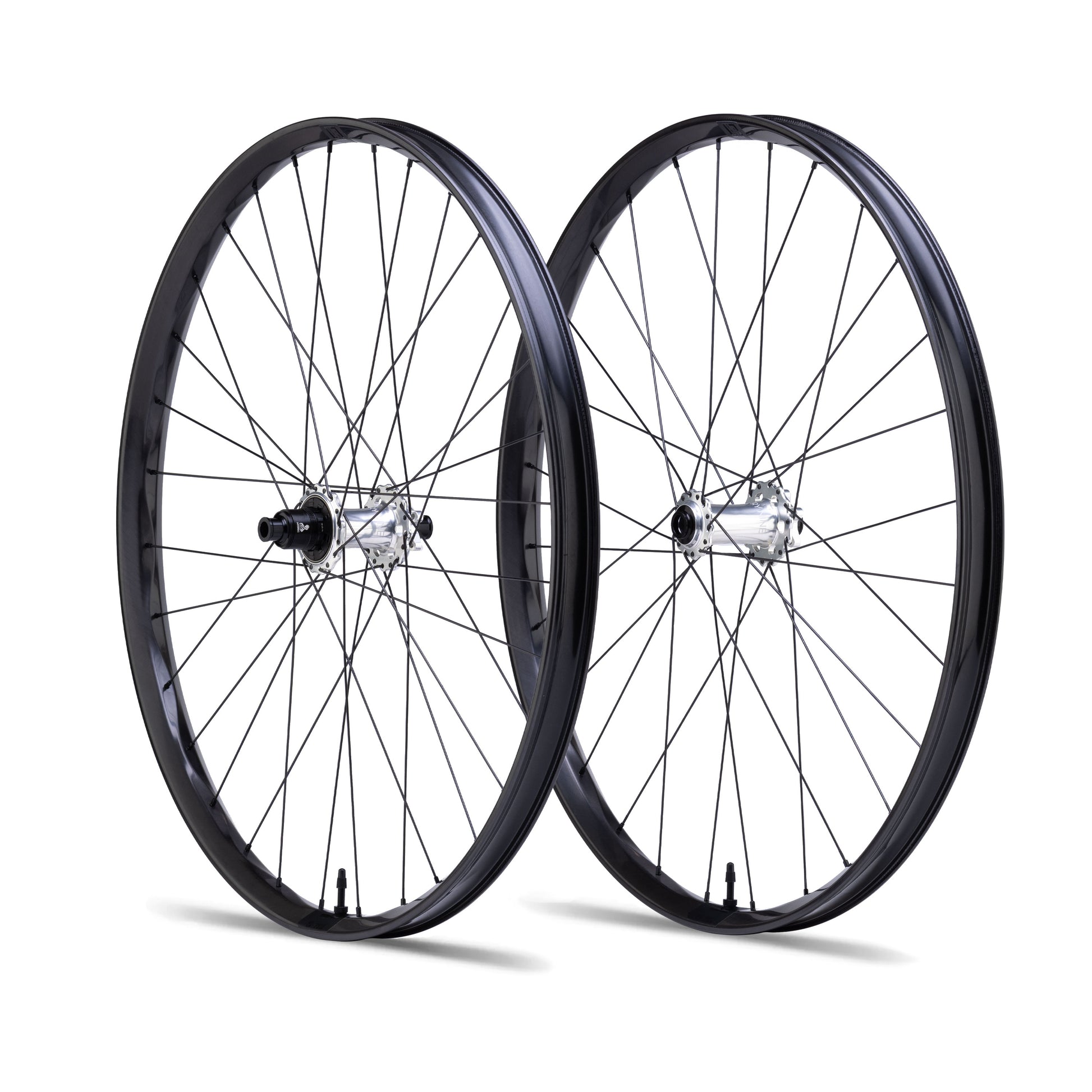

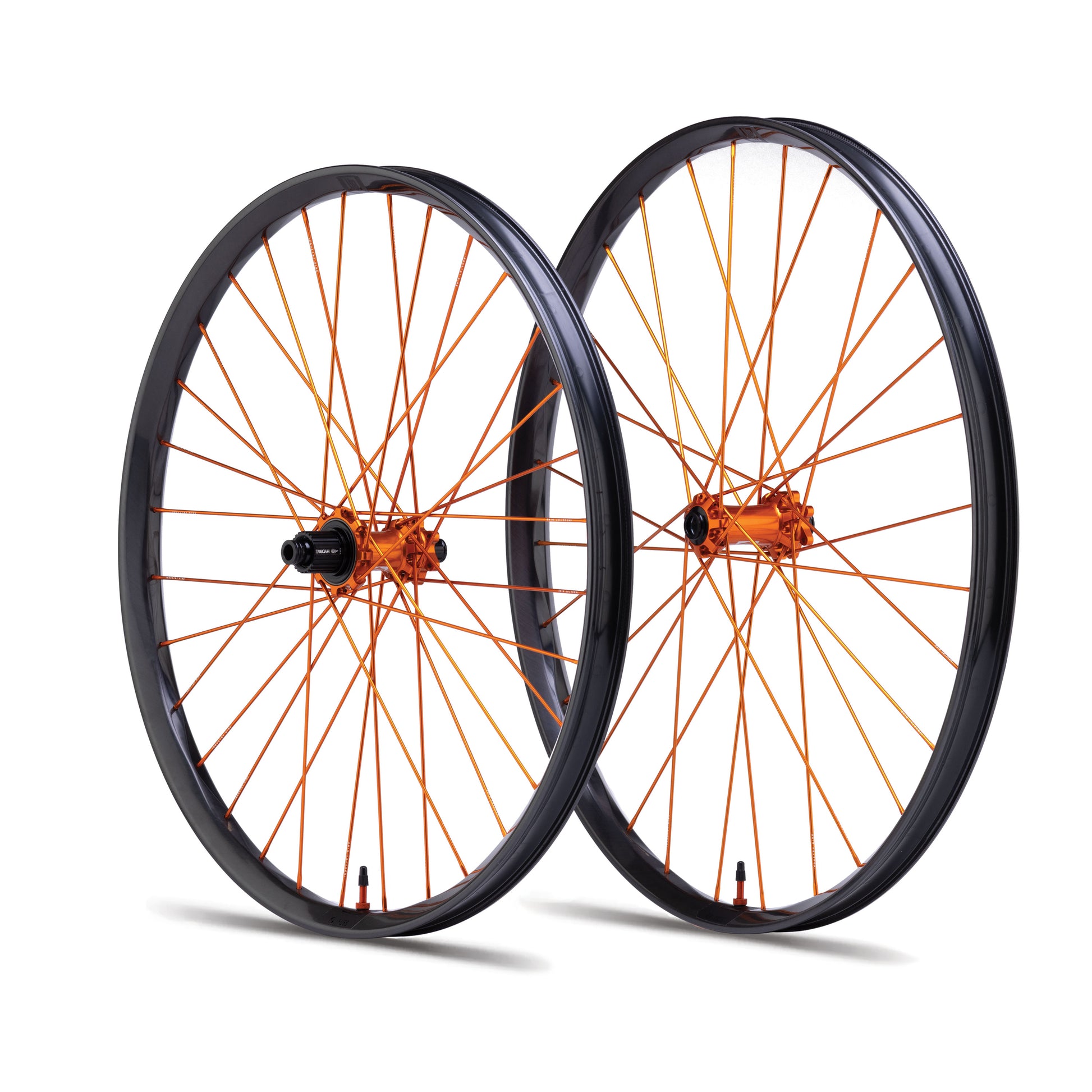

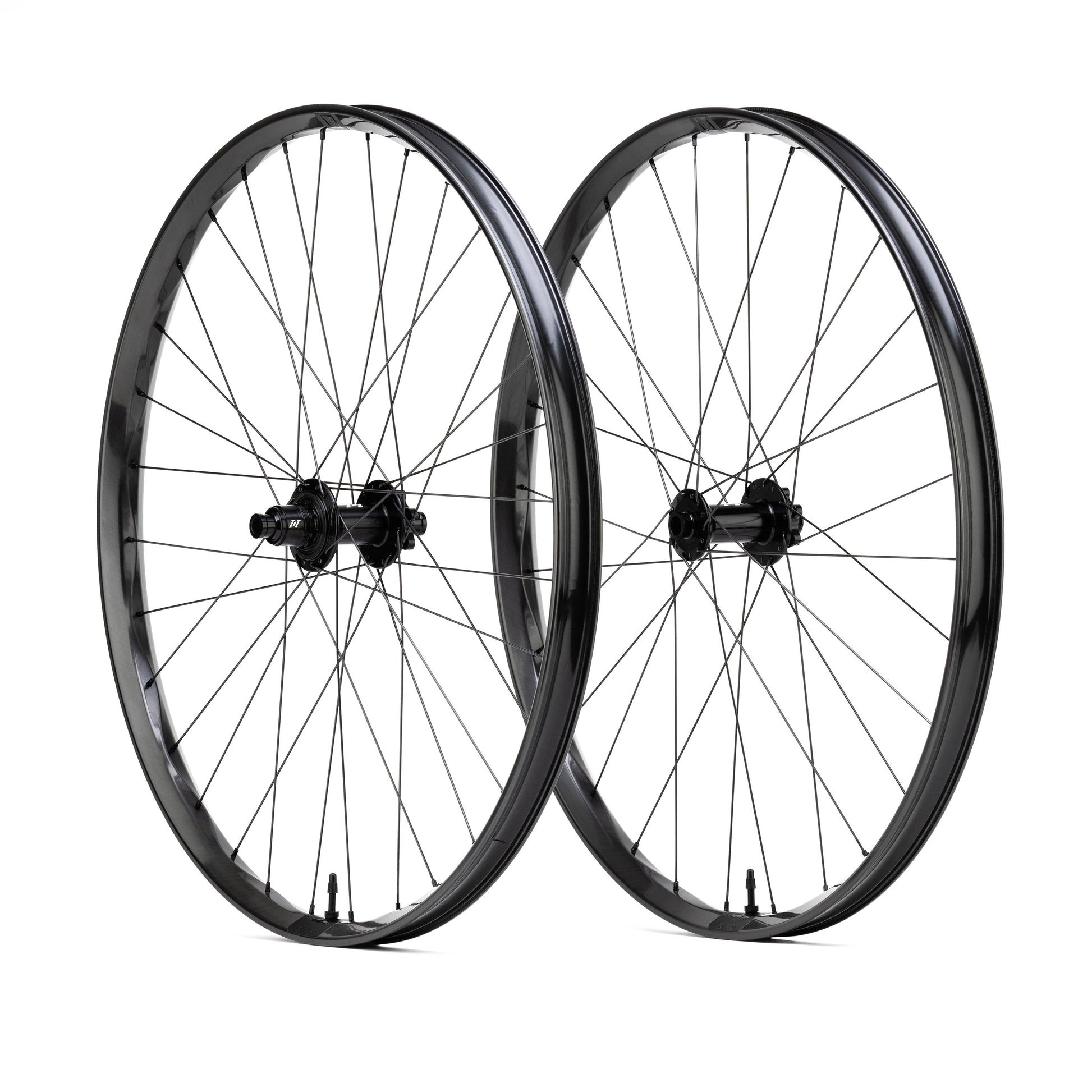

Your new Fuse Carbon wheelset.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Spoke type:

Select Hub model:

Select Front rim:

Select Front spacing:

Select Brake mount:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Your new Fuse Carbon wheel.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Spoke type:

Select Hub model:

Select Rear rim:

Select Rear spacing:

Select Brake mount:

Select Freehub driver:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Your new Fuse Carbon wheel.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Rim size:

Select Hole count:

Your new Fuse Carbon rim.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.
What Drives it all.

What Drives it all.

More tire volume, more contact patch, more traction when you're fully on the power.

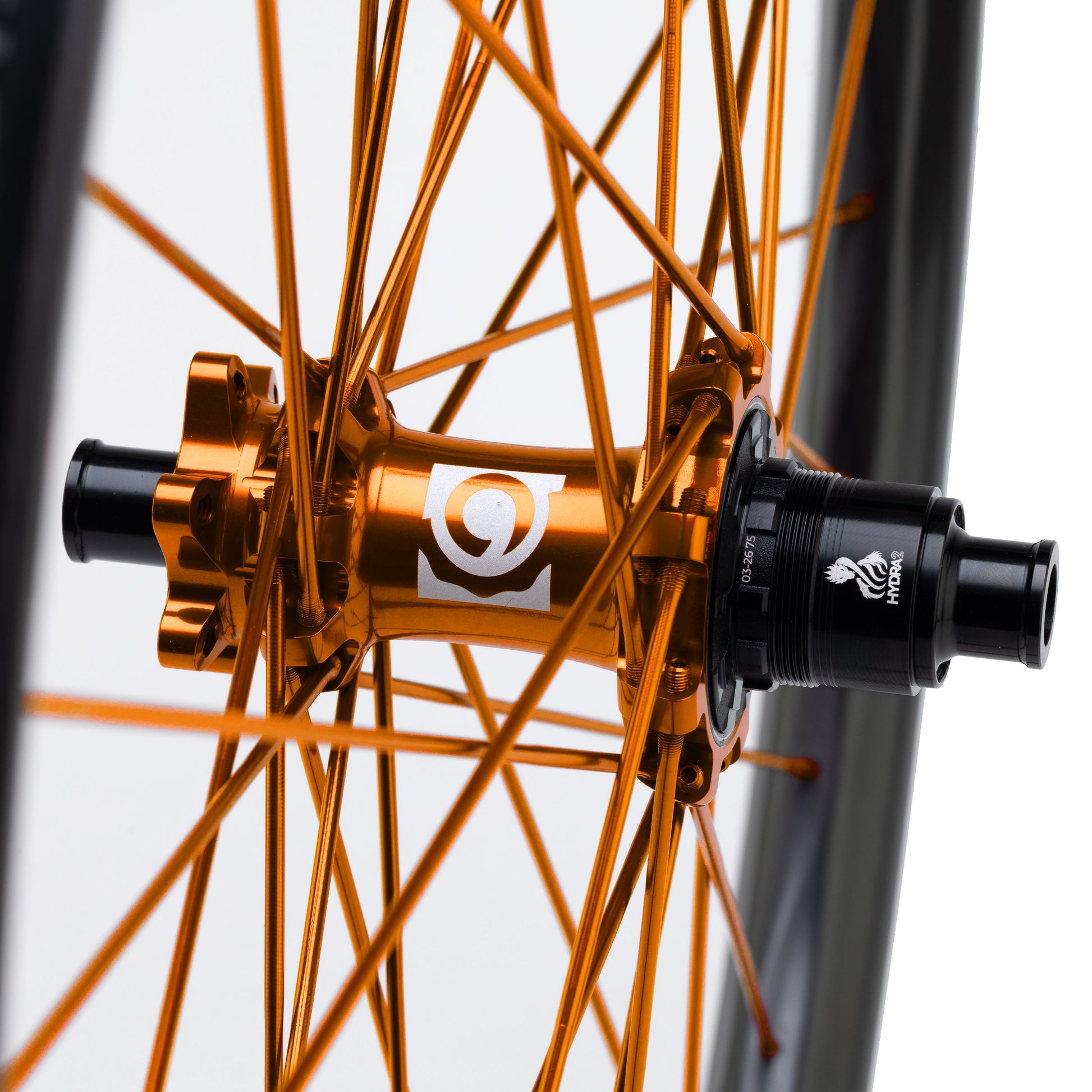

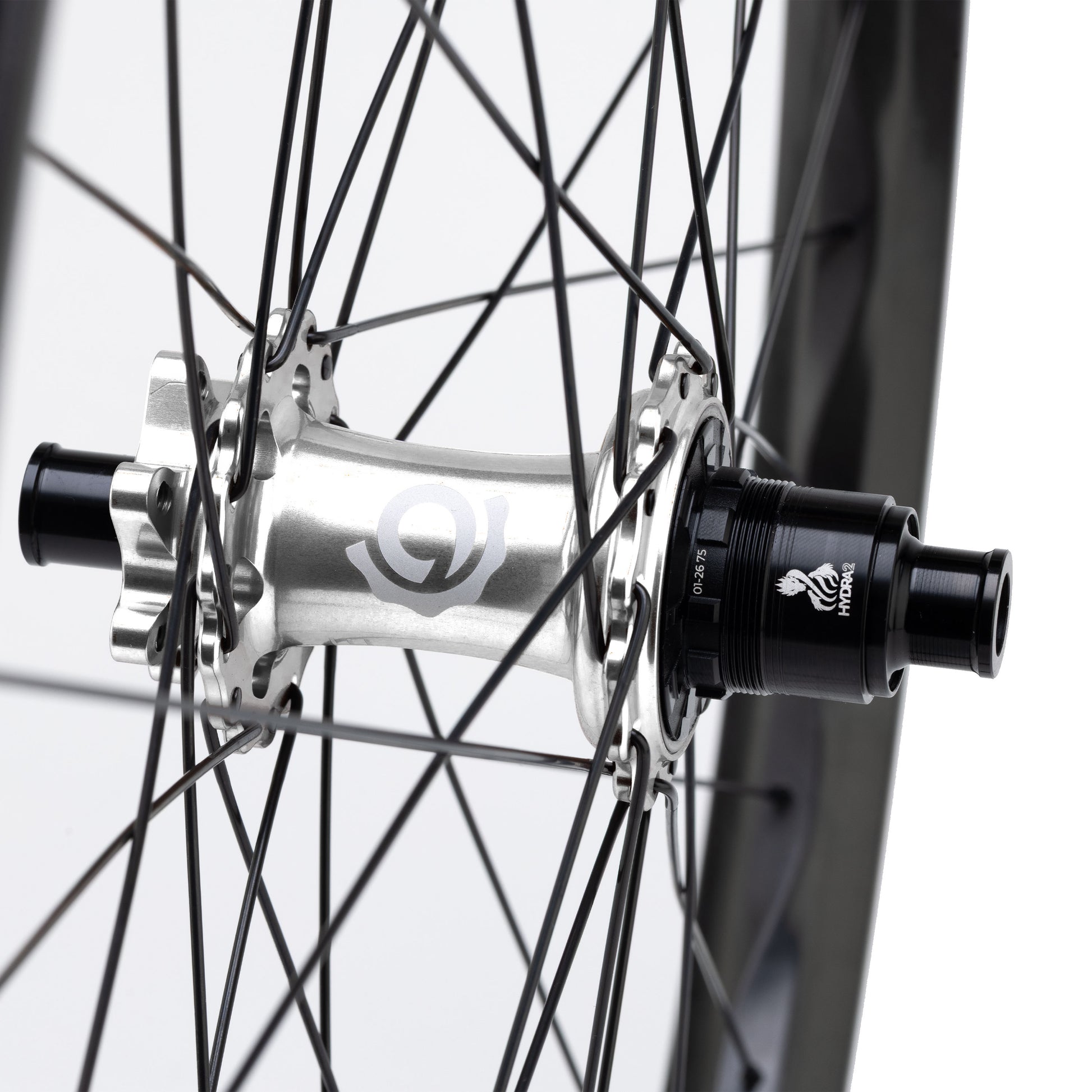

CHOOSE A HUB PLATFORM

The Hub platform defines how your bike interacts with you and the terrain—engagement, drag, and durability all working together to shape the ride. Select the platform that best fits your needs.

SYSTEM

Hub: Hydra2 System

P.O.E: 870 points

Engagement: .41 degrees

Spoke: SYSTEM SPOKE

One System. Zero Comprimise.

CLASSIC

Hub: Hydra2 J-bend

P.O.E: 870 points

Engagement: .41 degrees

Spoke: J-Bend Sapim

Trusted by Design

1/1

Hub: 1/1 J-bend

P.O.E: 90 points

Engagement: 4 degrees

Spoke: J-Bend Sapim

Simple. Solid. Reliable.

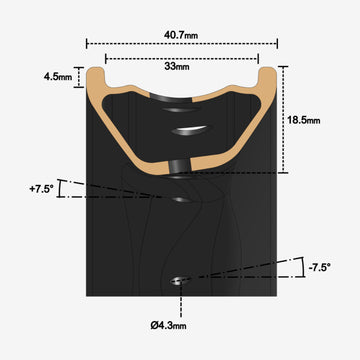

Fuse Carbon Specs

Fuse Carbon Specs

Material: Carbon
Size: 27.5" & 29"
Hole Count: 28h & 32h
Internal Width: 33mm
Rim Depth: 18mm (29") / 21mm (27.5")
ERD: 27.5": 562mm | 29": 604mm
Weight: 27.5": 566g (32h) | 29": 579g (28h & 32h)

Intended Use: Enduro, aggressive trail, and technical riding

Wheel Weights System Classic 1/1
29" Front 897g954g962g
29" Rear 1041g1089g1104g
27.5″ Front 871g928g936g
27.5″ Rear 1015g1061g1076g
29" Wheelset 1938g2043g2066g
29" / 27.5″ Wheelset 1912g2015g2038g
27.5″ Wheelset 1886g1989g2012g

All weights are approximate. Measured in grams (g). Due to the manufacturing process, each wheel can vary +/- 10g. All wheels weighed using boost hubs front and rear.

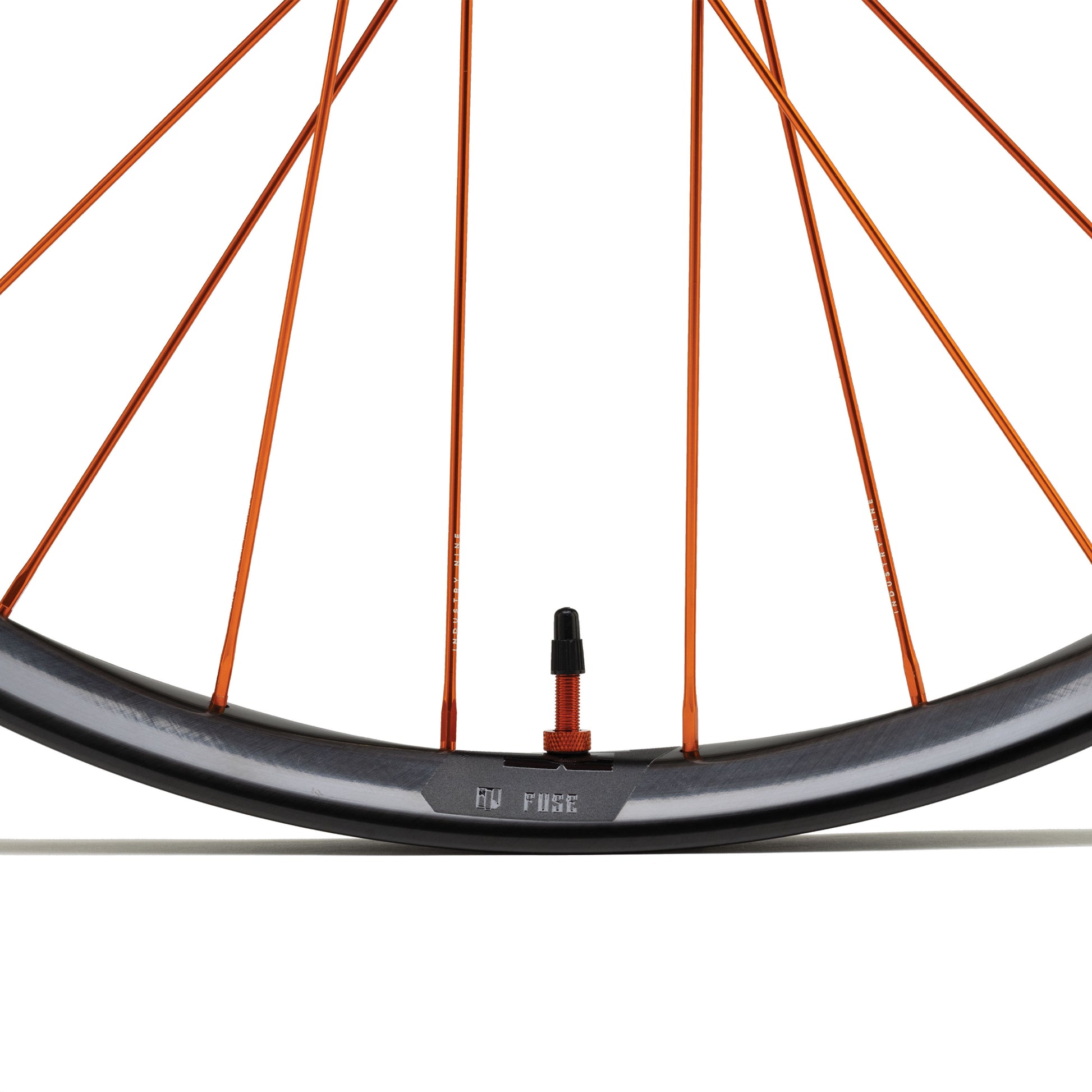

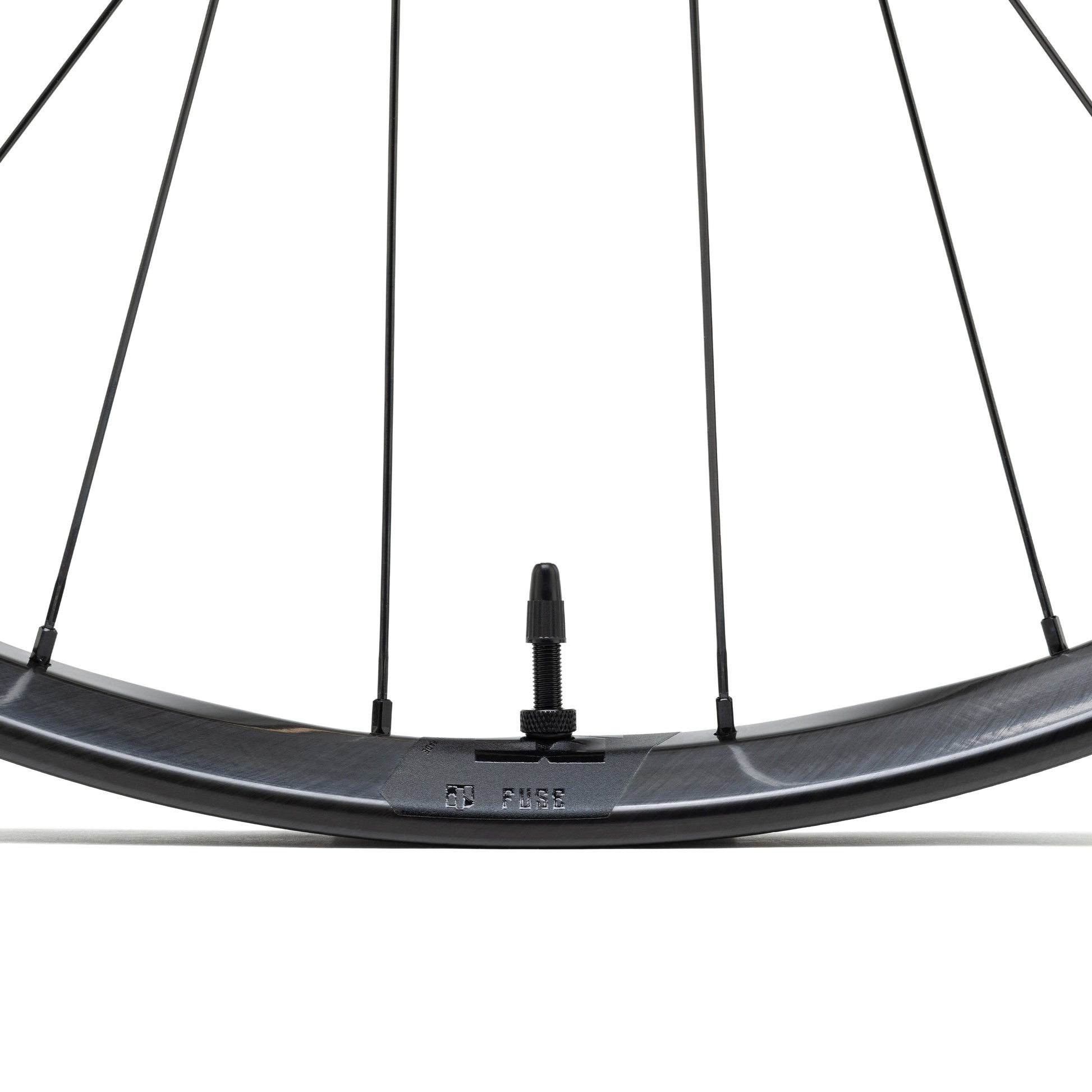

WR1 Rims - Hand Laid In Kamloops, BC

WR1 Rims - Hand Laid In Kamloops, BC

Fuse wasn't adapted for e-bike loads. It was engineered for them from the first version.

Handmade in North America. Ridden Everywhere Else.

Handmade in North America. Ridden Everywhere Else.

We put our name on what we build because the people who build it demand nothing less. This is craft. This is community. This is what it looks like when you care enough to get it right and then go ride it.
