Build your Deal Carbon

Start Building

Summary

Select Spoke type:

Select Hub model:

Select Front rim:

Select Rear rim:

Select Front spacing:

Select Rear spacing:

Select Brake mount:

Select Freehub driver:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Your new Deal Carbon wheelset.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Spoke type:

Select Hub model:

Select Front rim:

Select Front spacing:

Select Brake mount:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Your new Deal Carbon wheel.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Spoke type:

Select Hub model:

Select Rear rim:

Select Rear spacing:

Select Brake mount:

Select Freehub driver:

Select Hub color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Select Spoke color:
Black
Bronze
Gold
Orange
Purple
Red
Silver

Your new Deal Carbon wheel.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.

Select Rim size:

Select Hole count:

Your new Deal Carbon rim.

Just the way you want it.

* 28h or 32h front hub will be used based on availability.
What Drives it all.

What Drives it all.

The Convergence profile keeps the wheel tracking where you point it, run after run.

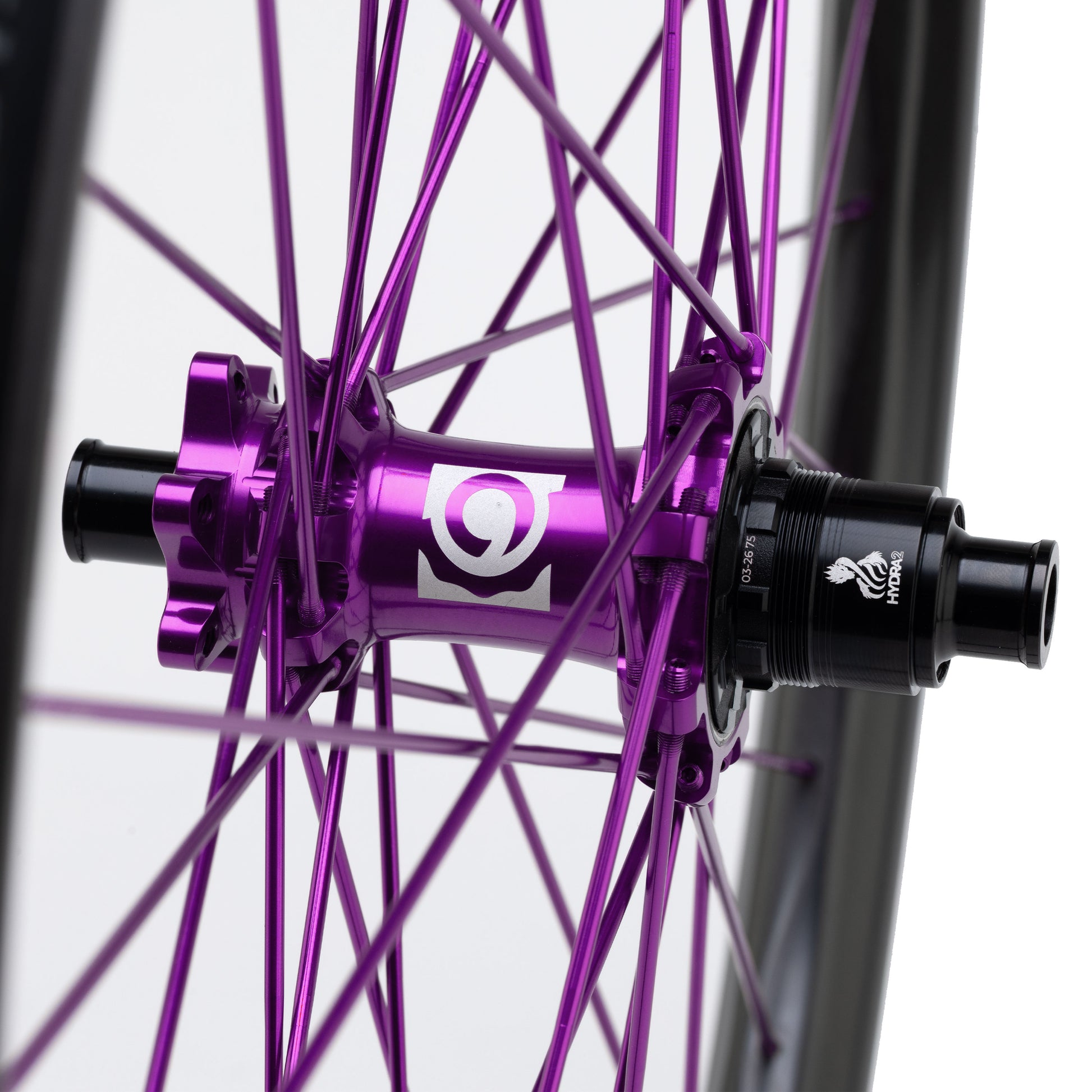

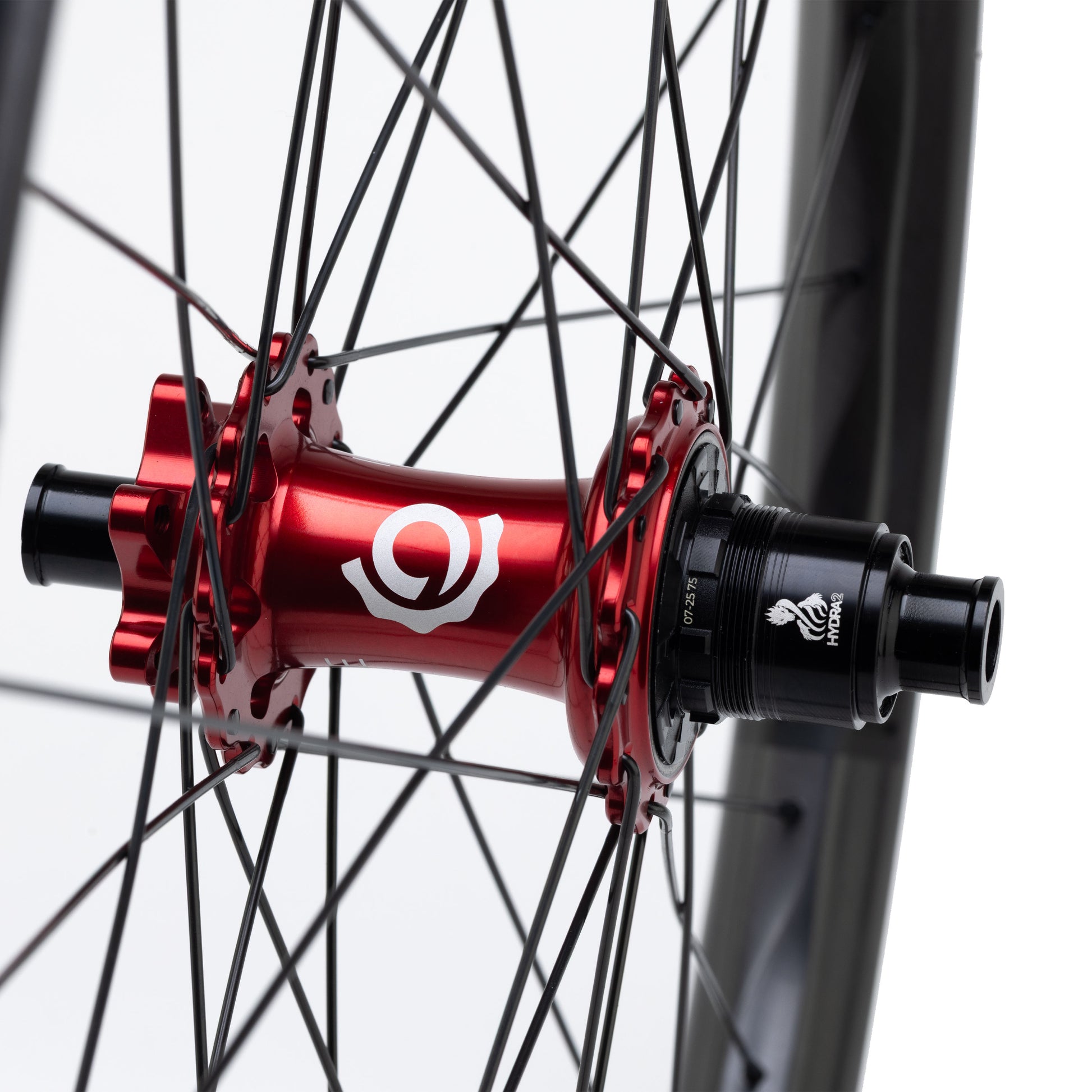

CHOOSE A HUB PLATFORM

The Hub platform defines how your bike interacts with you and the terrain—engagement, drag, and durability all working together to shape the ride. Select the platform that best fits your needs.

HYDRA2 SYSTEM

P.O.E: 870 points

Engagement: .41 degrees

Spoke: SYSTEM SPOKE

One System. Zero Comprimise.

HYDRA2 J-BEND

P.O.E: 870 points

Engagement: .41 degrees

Spoke: J-Bend Sapim

Trusted by Design

1/1

P.O.E: 90 points

Engagement: 4 degrees

Spoke: J-Bend Sapim

Simple. Solid. Reliable.

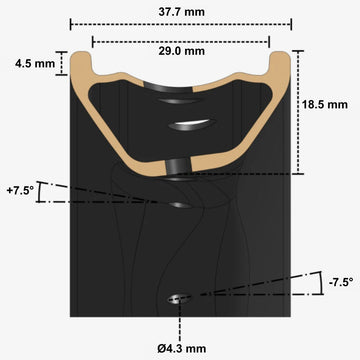

Deal Carbon Specs

Deal Carbon Specs

Material: Carbon
Size: 27.5" & 29"
Hole Count: 32h
Internal Width: 28mm (27.5") / 29mm (29")
Rim Depth: 21mm (27.5") / 18mm (29")
ERD: 27.5": 562mm | 29": 604mm
Weight: 27.5": 618g | 29": 620g

Intended Use: Downhill

Wheel Weights

System Classic 1/1
29" Front 938g995g1003g
29" Rear 1082g1130g1145g
27.5″ Front 923g980g988g
27.5″ Rear 1067g1113g1128g
29" Wheelset 2020g2125g2148g
29" / 27.5″ Wheelset 2005g2108g2131g
27.5″ Wheelset 1990g2093g2116g

All weights in grams (g).

WR1 Rims - Hand Laid In Kamloops, BC

WR1 Rims - Hand Laid In Kamloops, BC

Not a bench spec. Tested on tracks 20 minutes from the workshop, then on the world stage.

Handmade in North America. Ridden Everywhere Else.

Handmade in North America. Ridden Everywhere Else.

We put our name on what we build because the people who build it demand nothing less. This is craft. This is community. This is what it looks like when you care enough to get it right and then go ride it.
